Creating Sections into different types of objectsΒΆ

You can create masks from planforms, combining planforms in multiple ways to reuse already completed computations. This is mostly relevant if using the OpeningAngleMethod to derive masks, because this method is fairly computationally expensive.

golfcube = spl.sample_data.golf()
OAP = spl.plan.OpeningAnglePlanform.from_elevation_data(
  golfcube['eta'][-1, :, :], elevation_threshold=0)

(Source code)

MP = spl.plan.MorphologicalPlanform.from_elevation_data(
  golfcube['eta'][-1, :, :], elevation_threshold=0, max_disk=8)

(Source code)

SM_from_OAM = spl.mask.ShorelineMask.from_Planform(
  OAP, contour_threshold=75)

SM_from_MPM = spl.mask.ShorelineMask.from_Planform(
  MP, contour_threshold=0.75)

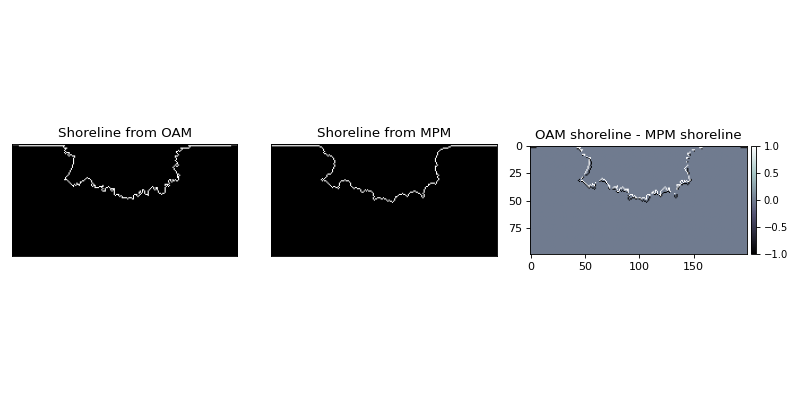

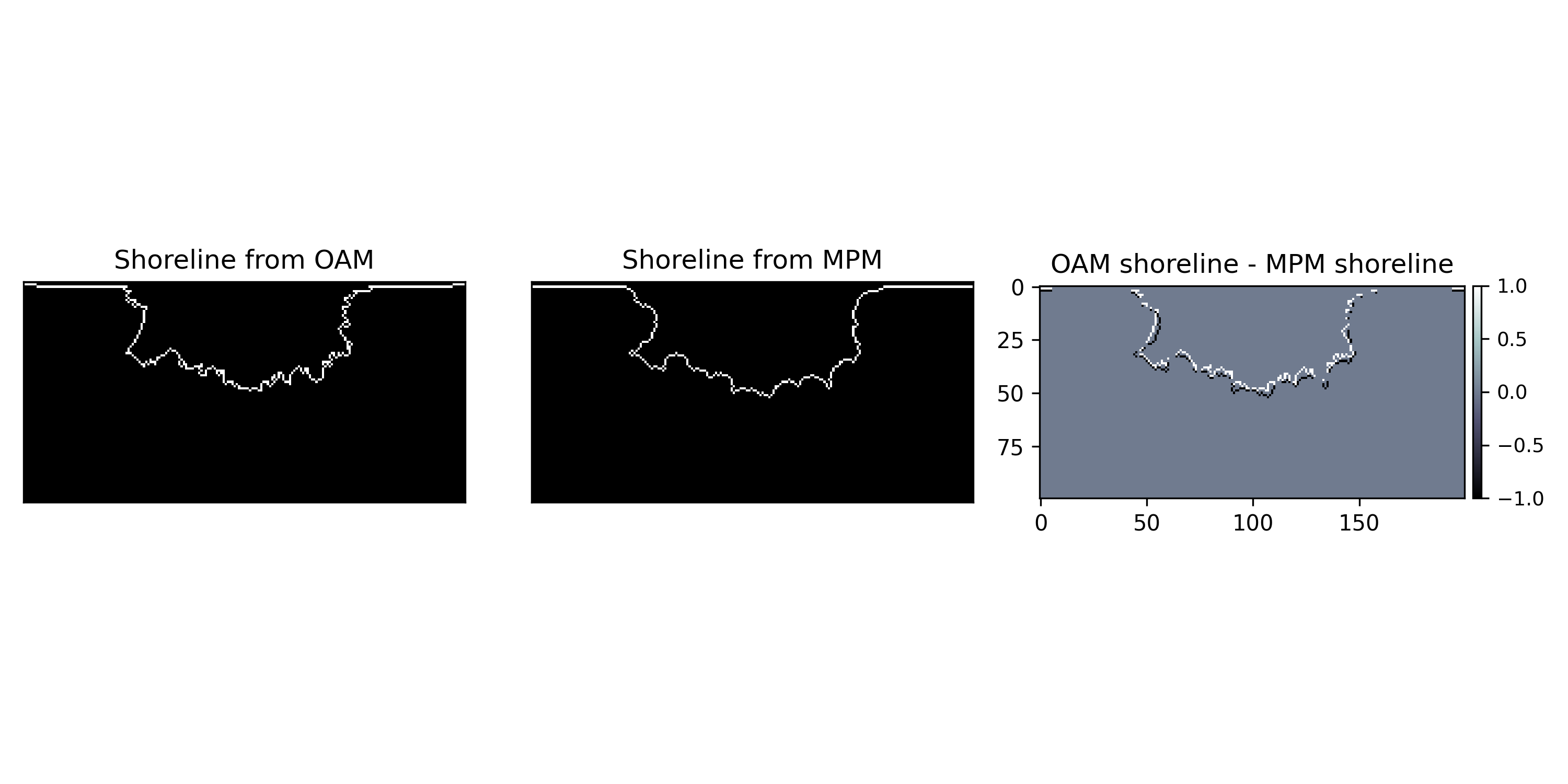

fig, ax = plt.subplots(1, 3, figsize=(10, 5))

SM_from_OAM.show(ax=ax[0])
ax[0].set_title('Shoreline from OAM')

SM_from_MPM.show(ax=ax[1])
ax[1].set_title('Shoreline from MPM')

diff_im = ax[2].imshow(
  SM_from_OAM.mask.astype(float) - SM_from_MPM.mask.astype(float),
  interpolation=None, cmap='bone')
ax[2].set_title('OAM shoreline - MPM shoreline')
spl.plot.append_colorbar(diff_im, ax=ax[2])

plt.tight_layout()
plt.show()

(Source code, png, hires.png)

../../../_images/masks_from_planforms-3.png
