sandplover.plan.compute_shoreline_roughness_area

sandplover.plan.compute_shoreline_roughness_area(shore_mask, land_mask, calculate_length=False, **kwargs)

Compute shoreline roughness, using land area.

Computes the shoreline roughness metric:

\[R = L_{shore} / \sqrt{A_{land}} \approx (N \times dx) / (\sqrt{A_{land}}\]

given binary masks of the shoreline and land area. The length of the shoreline is computed internally with compute_shoreline_length.

Changed in version 0.5: This function was formerly named compute_shoreline_roughness.

Important

The theoretical basis of the calculation assumes a (semi-, quarter-, etc) circular shape of the land area, as would be expected for a fan or delta. This calculation will still give a valid result on a straighter shoreline, but the absolute value of the result may be difficult to interpret in physical sense.

See also

This function is similar to, but distinct from compute_shoreline_roughness_coefvar, which uses an approach based on the deviation of the shoreline distance at all points from the mean shoreline distance.

See also

For a measure of shoreline roughness that is more appropriate for a straight shoreline, see compute_shoreline_rugosity.

Warning

shore_mask and land_mask must share coordinates, including grid resolution.

Parameters:

• shore_mask (ShorelineMask, ndarray) – Shoreline mask. Can be a ShorelineMask object, or a binarized array.

• land_mask (LandMask, ndarray) – Land mask. Can be a LandMask object, or a binarized array.

• calculate_length (bool, optional) – If calculate_length=True, then compute_shoreline_length is used to calculate the length of the shoreline explicitly, rather than counting the pixels in shore_mask. Default is False.

• **kwargs – Keyword argument are passed to compute_shoreline_length internally.

Returns:

rugosity – Shoreline rugosity, computed as described above.

Return type:

float

Examples

Compare the rugosity of the shoreline early in the model simulation with the rugosity later. Here, we use the elevation_offset parameter (passed to ElevationMask) to better capture the topography of the pyDeltaRCM model results.

>>> from sandplover.mask import LandMask
>>> from sandplover.mask import ShorelineMask
>>> from sandplover.sample_data.sample_data import golf

>>> golf = golf()

>>> # Early in model run
>>> lm0 = LandMask(
...     golf["eta"][15, :, :], elevation_threshold=0, elevation_offset=-0.5
... )
>>> sm0 = ShorelineMask(
...     golf["eta"][15, :, :], elevation_threshold=0, elevation_offset=-0.5
... )

>>> # Late in model run
>>> lm1 = LandMask(
...     golf["eta"][-1, :, :], elevation_threshold=0, elevation_offset=-0.5
... )
>>> sm1 = ShorelineMask(
...     golf["eta"][-1, :, :], elevation_threshold=0, elevation_offset=-0.5
... )

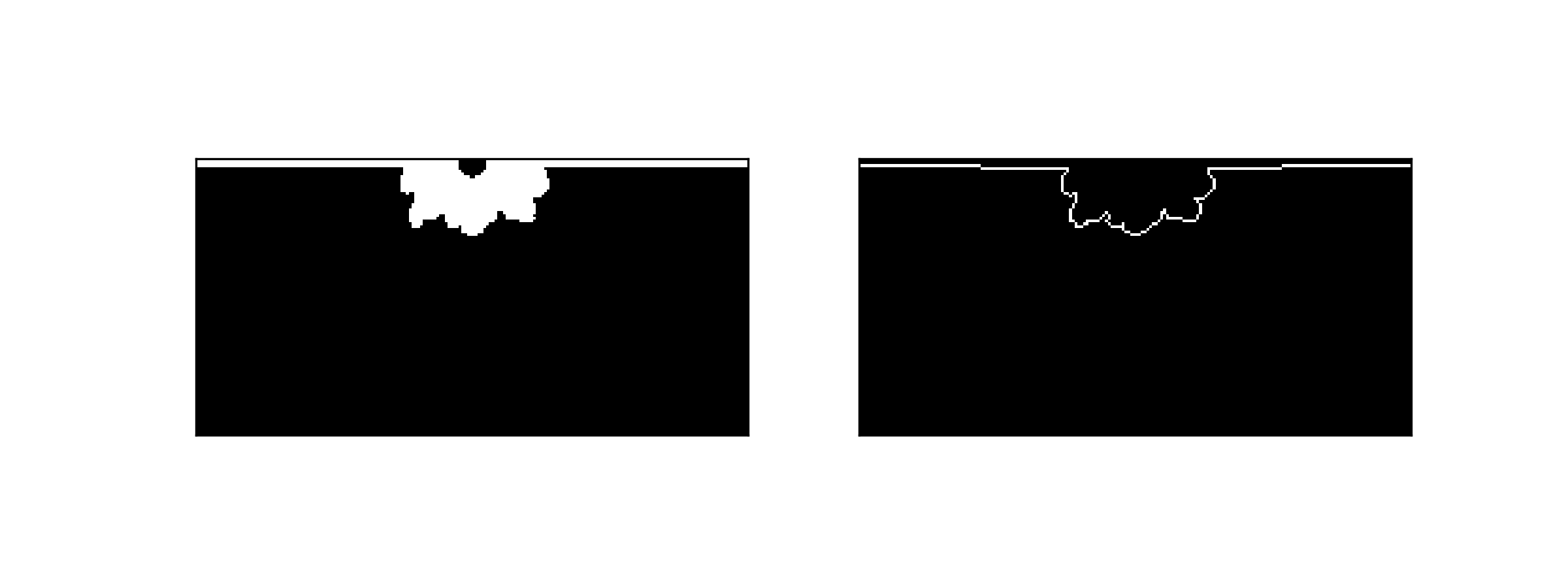

Let’s take a quick peek at the masks that we have created.

>>> import matplotlib.pyplot as plt

>>> fig, ax = plt.subplots(1, 2, figsize=(8, 3))
>>> lm0.show(ax=ax[0])
>>> sm0.show(ax=ax[1])

(Source code, png, hires.png)

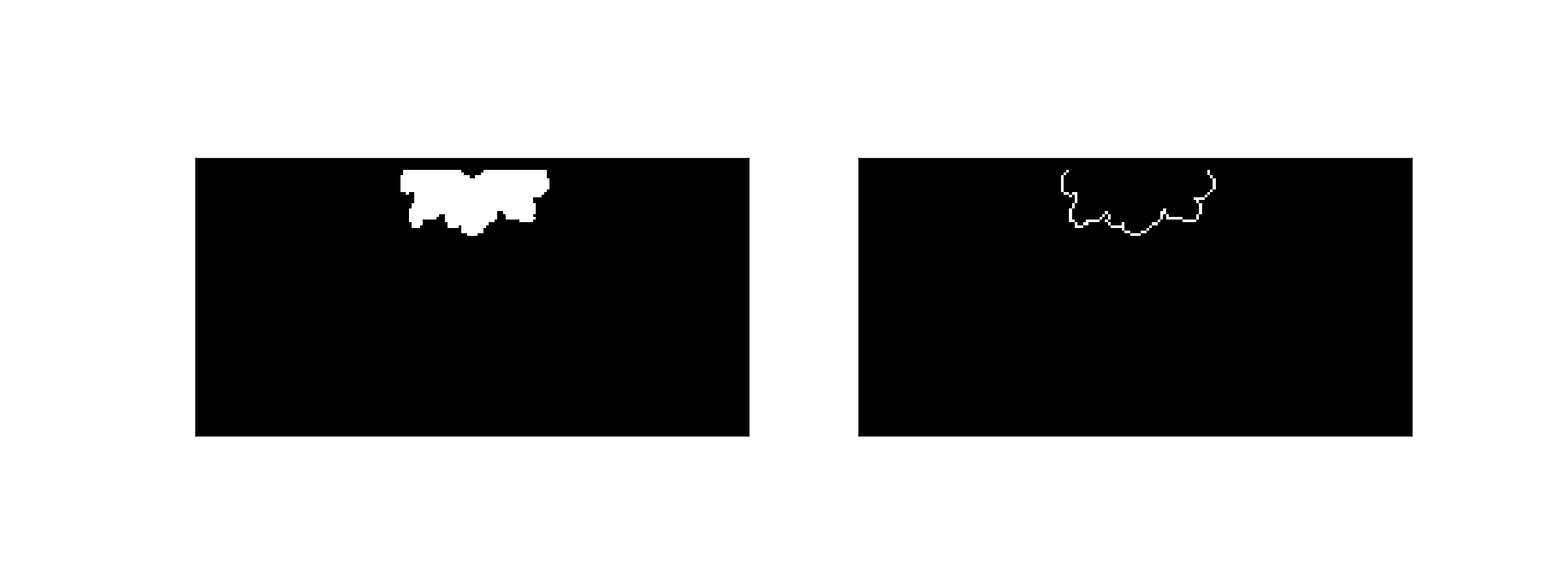

In order for these masks to work as expected in the shoreline rugosity computation, we need to modify the mask values slightly, to remove the land-water boundary that is not really a part of the delta. We use the trim_mask() method to trim a mask.

>>> lm0.trim_mask(length=golf.meta["L0"].data + 1)
>>> sm0.trim_mask(length=golf.meta["L0"].data + 1)
>>> lm1.trim_mask(length=golf.meta["L0"].data + 1)
>>> sm1.trim_mask(length=golf.meta["L0"].data + 1)

>>> fig, ax = plt.subplots(1, 2, figsize=(8, 3))
>>> lm0.show(ax=ax[0])
>>> sm0.show(ax=ax[1])

And now, we can proceed with the calculation.

(Source code, png, hires.png)

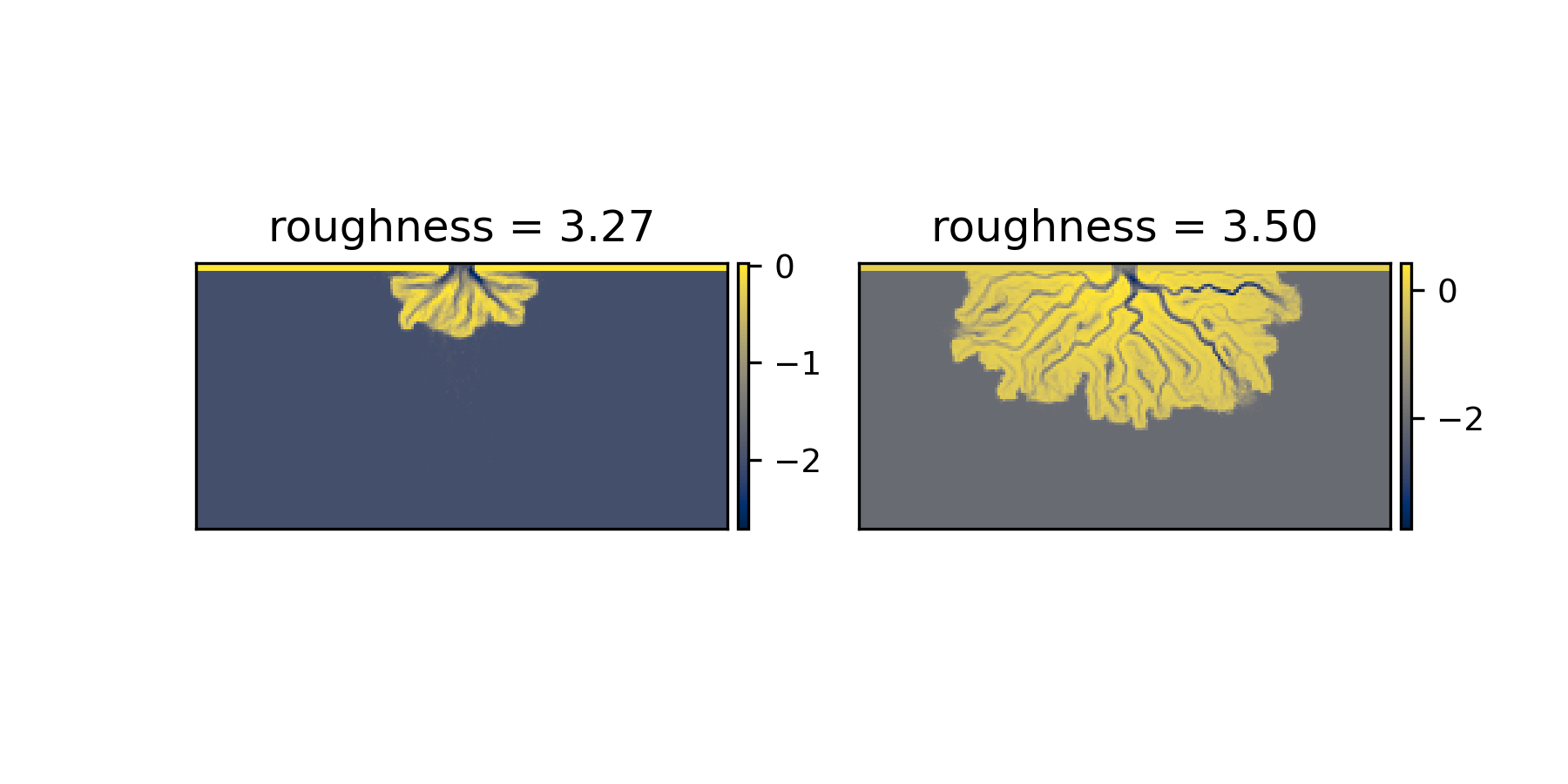

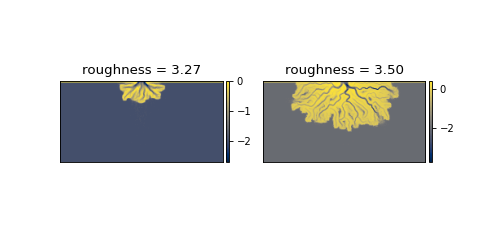

>>> # Compute roughnesses
>>> from sandplover.plan import compute_shoreline_roughness_area
>>> rgh0 = compute_shoreline_roughness_area(sm0, lm0)
>>> rgh1 = compute_shoreline_roughness_area(sm1, lm1)

>>> # Make the plot
>>> fig, ax = plt.subplots(1, 2, figsize=(6, 3))
>>> golf.quick_show("eta", idx=15, ax=ax[0])
>>> _ = ax[0].set_title("roughness = {:.2f}".format(rgh0))
>>> golf.quick_show("eta", idx=-1, ax=ax[1])
>>> _ = ax[1].set_title("roughness = {:.2f}".format(rgh1))

(Source code, png, hires.png)

See also

See this example using this metric and comparing it to the theoretical value for a perfect half-circle delta

See also

See this example, which compares all of the “shoreline roughness” metrics implemented in sandplover.
